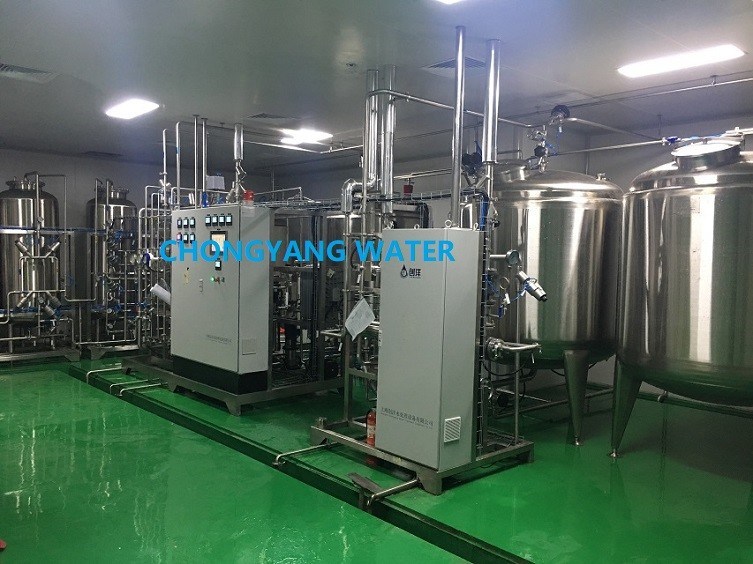

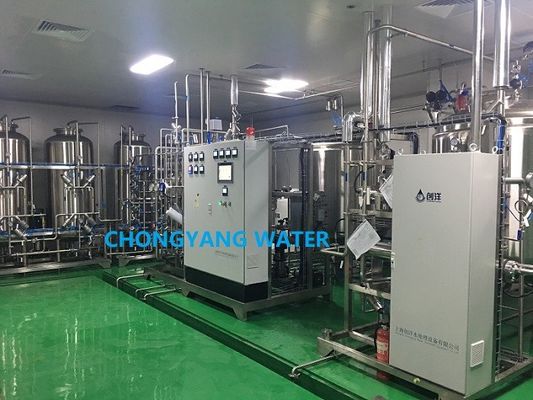

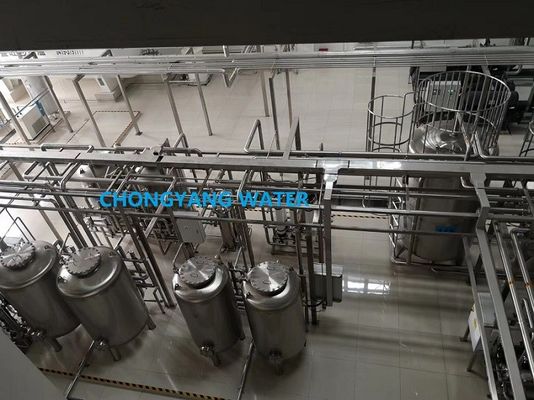

FDA CGMP GMP Industrial Water Filter System Water System In Pharmaceutical Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-ROE-2000L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 4999-10000 |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Capacity: | 3000L/H | Control System: | SIEMENS PLC+HIM |
|---|---|---|---|
| Installation: | On-site Installation | Material: | Stainless Steel 304,316L |
| Monitoring System: | Online Monitoring | Operating Temperature: | 5-45℃ |
| Purification Method: | Reverse Osmosis ,Ultra Filtration | FAT,SAT: | Available |
| Acid Passivation: | Available | Instrument: | Flow Meter ,Conductivity Meter,Resistivity Meter,Sensor |
| Highlight: | FDA industrial water filter system,CGMP GMP industrial water filter system,GMP water system in pharmaceutical industry |
||
Product Description
Product Name : Water purifier system for pharmaceutical industry with FDA CGMP GMP Standard with conveyor part.
Reverse Osmosis :
1. RO Systems ,with the recognition of microbiological problems, CHONGYANG WATR have installed heat exchangers immediately after the RO filters to heat the water to 75-80 celsius degrees to minimize the microbiological contamination .
2. With the development of biotechnology products ,many companies are utilizing RO and UF Systems to produce high purity water .
3. The use of 0.2 micron point can mask the level of microbiological contamination in the system.
Pharmaceutical water is divided into four part :
| Item | Process | Way |
| 1 | Pre-treatment part | Quartz Sand filter + Activated Carbon filter |
| 2 | Reverse Osmosis Device Part | Normal & High temperature Membrane |
| 3 | Disinfection Part | Hot water ,Ozone, |

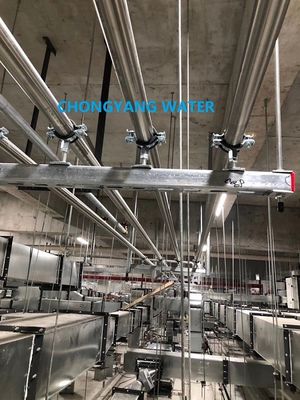

| 4 | Distribution Part | U type , |
Main Components of Water System
| Item | Parts Name | Brand |
| 1 | RO membrane | DOW ,HYDRANAUTICS |
| 2 | Valve | Diaphragm Valve ,Burket, Kinglai ,Yuan'an |
| 3 | Flowmeter | KROHNE |
| 4 | Pump | Grundfos ,CNP |
| 5 | Pressure Gauge | WEIKI |
| 6 | PLC | SIEMENS |
FAQ:
1. Question: Is pharma purified water system orbital welding ?
Answer :Yes. We weld with track welding .
2. Question: Do you need the middle water tank that means after First Reverse Osmosis membranes ?
Answer: Usually the water capacity more than 1000L/H needs middle water tank .
3. Question: What is consumables of water equipment ?
Answer: Multi-medium Sand ,Activated Carbon ,Softening Resing,Filter Core (PP Filter Cotton ), RO Membrane, UV lamp .
4. Question: How often are they changed ?
Answer : According to situation of water treatement frequence , Usually the sand ,activatec carbon ,softening resin time is one year, filter core time is 3 month,RO Membrane is 2-3 years , UV Lamp is one year .
